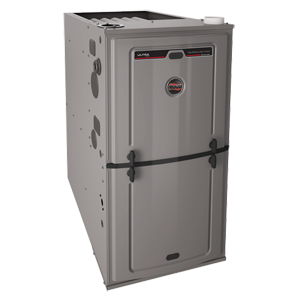

R96P 96% One Stage Gas Furnace
The Ruud R95P Achiever® Series Gas Furnace was engineered to warm your home in the most reliable, efficient way possible. You get year-round comfort — and a break on your energy bill.
- 95% residential gas furnace CSA certified
- 4 way multi-poise design
- PlusOne™ Diagnostics 7-Segment LED all units
- PlusOne™ Ignition System – DSI for reliability and longevity
- PlusOne™ Water Management System with patented Blocked Drain Sensor
- Heat exchanger is removable for improved serviceability. Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.
- Integrated control boards feature dip switches for easy system set up
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| R95PA040 | 42.0 | 40.3 | 95.0 | 1121 | 34x17.5x29.6 | 124 | |
| R95PA060 | 56.0 | 53.7 | 95.0 | 1232 | 34x17.5x29.6 | 128 | |
| R95PA070 | 70.0 | 67.2 | 95.0 | 1318 | 34x17.5x29.6 | 132 | |
| R95PA085 | 84.0 | 80.6 | 95.0 | 1742 | 34x21x29.6 | 148 | |
| R95PA100 | 98.0 | 84.1 | 95.0 | 1782 | 34x21x29.6 | 152 | |
| R95PA115 | 112.0 | 107.5 | 95.0 | 1934 | 34x24.5x29.6 | 165 |
Warranty Information
- All Parts for 120 months - 10 Year parts warranty when promptly registered online
- Heat Exchanger - Limited Lifetime
